Brush DC Power-driven Electric Linear Actuators With non adjustable
limit switches customize stroke
R&D continues at sino linear actuator as we develop smaller,
powerful, stable and more cost effective linear actuators
for the next generation of automation.
- Over 10 models to choose from
- Stroke lengths from 30mm to 1000mm
- 12V , 24V input options
- We offer both rod actuators and linear
actuators
- Forces up to 12000N
- No in-stock, every piece are customized device
- Phone
and email support
- All products have 1 year warranty
We are a professor company on linear actuators; we have different
linear actuators with different specifications:
- Mute linear actuators
- Heavy duty linear actuator
- Light duty linear actuator
- High force linear actuators
- Mini Linear Actuator
Specification of Electric Linear Rod Actuator
| Model | Electric Linear Rod Actuator |
| Input | 12v DC |
| Dynamic Force | 3500N |
| Static Force | 3500N |
| Speed | 17mm/s |
| Stroke | 350mm |
| Retracted length | 600mm |
| Extended length | 950mm |
| Duty Cycle | 25% at 100% load |
| IP Rating | 65 |
| Screw | Acme Screw |
| Clevis Ends | 13mm diameter |
| Operational Temperature | -40°C/65°C (-104°F/150°) |
| Limit Switch | Built-in (factory preset) |
| Safety Certifications | CE |
IP Rating Reference Chart ( LINEAR ACTUATOR )
Below is an easy to follow reference chart to know IP rating you
use now |
| IP Number | First Digit - SOLIDS | Second Digit - LIQUIDS |
| IP43 | Protected from tools and small wires greater than 1 millimeter. | Protected from water spray less than 60 degrees from vertical. |
| IP54 | Protected from limited dust ingress. | Protected from water spray from any direction. |
| IP65 | Protected from total dust ingress. | Protected from low pressure water jets from any direction. |
| IP66 | Protected from total dust ingress. | Protected from high pressure water jets from any direction. |
L.min means the length when the linear actuator 100% fully
retracts, meanwhile,
it will touch the tail limited switch, stop automatically, very
safe.
Stroke means the movement length of the linear actuator.
L.max means the length when the linear actuator 100% fully extends,
meanwhile,
it will touch the head limited switch, stop automatically, very
safe.
Linear actuator with limit switch/potentiometer
50≤Stroke＜400, L=S+250mm
400≤Stroke＜600, L=S+300mm
Linear actuator without limit switch
50≤Stroke＜400, L=S+200mm
400≤Stroke＜600, L=S+250mm

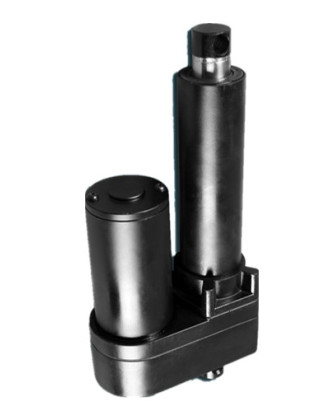

PICTURE OF WATERPROOF LINEAR ACTUATOR
Load & Speed of linear actuator
| Code | Max load(N) | Speed (mm/s) |
| A | 7000 | 5.5 |
| B | 5000 | 11 |
| C | 4000 | 17 |
| D | 3000 | 22 |
| E | 2000 | 35 |
Stroke & Installation length of linear actuator:
| Stroke size(in mm) | Fully retracted (in mm) | Fully extended (in mm) |
| 50 | 250 | 300 |
| 100 | 300 | 400 |
| 150 | 350 | 500 |
| 200 | 400 | 600 |
| 250 | 450 | 700 |
| 300 | 500 | 800 |
| 350 | 600 | 950 |
| 400 | 650 | 1050 |
| 450 | 700 | 1150 |
| 500 | 750 | 1250 |
| 550 | 800 | 1350 |
| 600 | 850 | 1450 |
Advantages of linear actuator
- Simple structure
- Low cost
- Safety
- Position feedback.
- Operating process can be automated
- Accuracy
- High-speed operation
- High durability

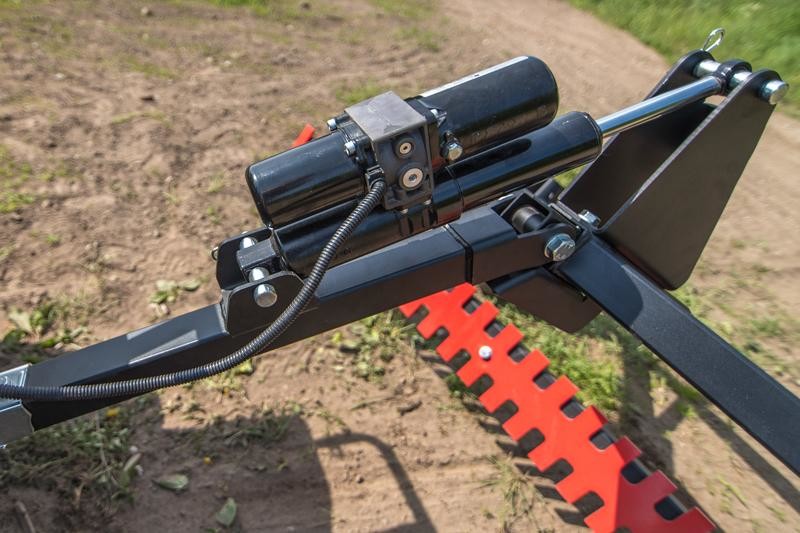

Applications of Linear actcuator
· Robotic Vehicles
· Automatic Guidance Vehicles
· Camper
· Led car, arrow board trail
· Door Openers
· Floor Cleaning Equipment
· Lawn Mover
· Snow plough
· Boat
· Solar tracker system
· Wheelchairs
· Harvesting machine
· Construction machine
How can you find the right linear actuator?
When determining a design for your linear actuator, there are
countless factors to take into consideration.
One of the first things you'll need to determine is the viability
of standard linear actuator designs for your project.
If standard can't be made to work efficiently, it's time to start
looking at custom options.
· Size
· Input voltage
· Load speed
· Load capacity in lbs/N
· Environment
· IP rate
· Production
· Material
Our main goal is to satisfy and exceed the expectations of our
clients.
We have the capabilities to meet low and high product volume
requirements.
